TD LINE-XXX has been platformization/modularization.Mainly used in new energy HV wire harness, communication wire harness and sensor wire harness.lt can meet you various customization needs.
HV Small Cable 4 Wire Processing Platform
HV Big Cable 5-in-1 Line

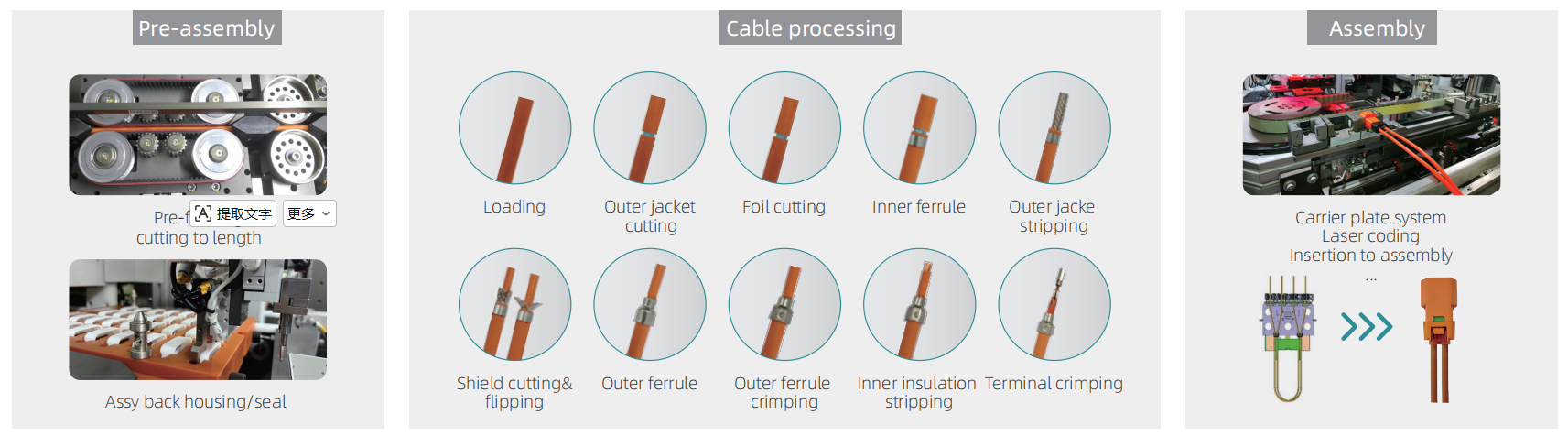

HV Small Cable 4 Wire Processing Platform: HV Big Cable 5-in-1 Line:

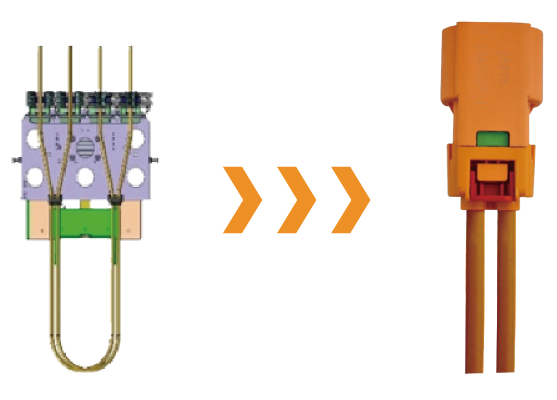

Expandable to preloading and housing assembly

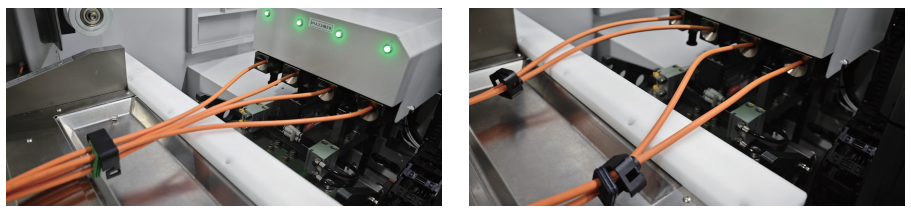

HV Small Cable 4 Wire Processing Platform
Cable Cross Section | 2.5-6mm²(with foil) |
Cable Outer Diameter | 4.5-7mm |
Jacket Stripping Length | 10-35mm |
Shield Braid Cutting Length | 0-28mm |
Inner Insulation Stripping Length | 0-10mm |
HV Big Cable 5-in-1 Line
Cable Outer Diameter | 6-23mm |
Foil Removal Length | 5-100mm |
Cable Cross Section | 6-120mm² |
Jacket Stripping Length | 5-100mm
|
Inner Insulation Stripping Length | 5-95mm
|
Note:This machine can be compatible with more than 2.5mm² wire harness without aluminum foil (need sample testing)
